Ingcaciso yeMveliso

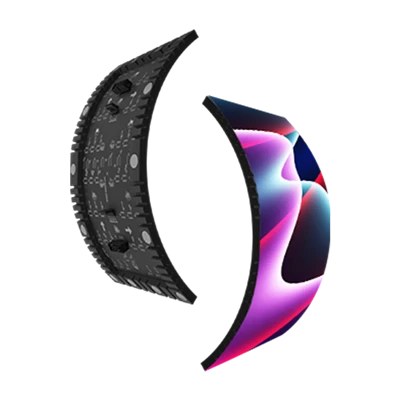

Udonga lokuBonisa lwe-LED olugobileyo sisisombululo esiguquguqukayo sokubonisa sangaphakathi esakhiwe ngee-PCB ze-polymer eziguquguqukayo kunye ne-silicone backings ethambileyo, eyenzelwe ukuxhoma ngaphandle komthungo kwindawo egobileyo, iikholamu, kunye neemilo zesiqhelo zokwakha apho iiphaneli eziqinileyo zingenako ukulingana.
IiNgcaciso eziPhambili zobuGcisa
| Uhlobo lweMveliso | Isiboniso se-LED esiguquguqukayo sangaphakathi |
| Ukutyeba kweModyuli | < 7.8 mm |
| Ukuguquguquka iAngle | Ukuya kuthi ga kwi-135℃(Concave & Convex) |
| Ubuncinci beDiameter yokugoba | ~110 mm (P0.9–P1.25) ukuya ~400 mm (P4.0) |
| Uluhlu lwePixel Pitch | P0.9 ukuya P4.0 |
| Imilinganiselo yemodyuli | 320×160mm, 200×150mm, 240×120mm, 250×125mm, 320×180mm |
| Ukufakwa kwe-LED | I-SMD eqhelekileyo 3-in-1 |
| Ukuqaqamba | 450 ukuya 700 oonomoyi |
| Ireyithi yokuhlaziya | 3,840 Hz (Ubungwe: 14-Bit) |
| Umlinganiselo wokuthelekisa | 6,000:1 |
| Umbandela ongemva weqweqwe | {0}ukuqina okuphezulu kwesilicone ethambileyo |
| Indlela yokuNqamisa | Ngaphambili{0}}ukufunxa kazibuthe |
| Indawo yokusebenza | Ngaphakathi (-10 isidanga ukuya +50 isidanga , 10–95% RH non-condensing) |
Iingenelo ezingundoqo
UHambano olungenamthungo kwiMimandla eQinisekileyo
I-Ultra-iprofayile ecekethekileyo engaphantsi kwe-7.8mm idityaniswe ne-±135℃flex bendability ivumela iimodyuli ukuba zisonge ngokutyibilikayo kwiintsika ezimxinwa njenge-110mm ububanzi ngaphandle kokubonwayo okanye ukonakaliswa komkhondo.
Umgangatho wokuBoneleka oPhakamileyo{0}}oNgayekeleliyo
I-SMD 3 esemgangathweni -kwi-1 ye-LEDs ihambisa ukuya kuthi ga kwi-700 nits yokukhanya, i-3,840Hz ireyithi yokuhlaziya, kunye ne-6,000: i-1 umahluko, iqinisekisa i-gradients egudileyo, ukusebenza kwekhamera e-flicker-free, kunye nesiphumo esibonakalayo esicacileyo.
Phezulu -Ukuqina Okuguquguqukayo Ngaphandle Kokulandela Ukudinwa
I-multi- umaleko oguquguqukayo wepolymer PCB kunye -nezindlu zesilicone ezihlala zihlala zixhathisa ukuqhekeka, ukomisa, okanye ukuqina, ukugcinwa koqhagamshelwano lwesekethe kwiigophe zesakhiwo.
100% Ngaphambili{1}}UFikelelo lweManethi yeNkonzo
Ngokuthe ngqo ezingiswe phezulu{0}}oomazibuthe bamandla babamba iimodyuli ngokuchasene nezakhelo zentsimbi ye-ferrous ngokukhuselekileyo, zivumela{1}}ukufunxa komntu omnye{2}}ukususwa kwesixhobo ngaphambili xa ukufikelela ngasemva kungenakwenzeka.
IHybrid Flat kunye noManyano olugobileyo
Yabelana ngojongano lombane kunye nemilinganiselo yepitshi kunye neemodyuli ezisicaba ezisemgangathweni, eyenza ufakelo olungenamthungo oludityanisiweyo kwiflethi engumxube-u{1}}kwimigangatho eyilwe eyigophe.
Iinketho zokwenza ngokwezifiso
|
Into yokwenza ngokwezifiso |
Iinketho ezifumanekayo |
|
I-Pixel Pitch |
P0.9, P1.2, P1.5, P1.8, P2.0, P2.5, P3.0, P4.0 |
|
Imilinganiselo yemodyuli |
320×160mm, 200×150mm, 240×120mm, 250×125mm, 320×180mm |
|
Ukukhanya Okulungileyo{0}}UkuSungula |
450 oonomoyi ukuya 700 uluhlu oonomoyi |
|
Izikhokelo zeSakhelo seNsimbi |
Custom CAD / imizobo uyilo lwesakhiwo |
|
Umiselo Lwenkqubo Yolawulo |
Iyahambelana neNovaStar, iColorlight, iinkqubo zeLinsn |
Izicelo zoYilo lwezakhiwo
Izisongelo zeNtsika yangaphakathi:Ukuguqula iikholamu zesakhiwo kwiindawo zokuhamba, iindawo zokuhlala ehotele, kunye namaziko enkomfa abe yimiboniso ye-360℃cylindrical.
Iindonga zamaza aqhubekayo:Yenza utshintsho olugudileyo phakathi kweconcave kunye neconvex curves kwiimyuziyam zesayensi, amagumbi emiboniso, kunye neendawo zokungena zeshishini.
I-360℃Free{1}}IiSilinda ezimileyo:Ibonelela ngemiboniso yee-engile ezininzi - zokuboniswa kweemoto, imiboniso, kunye nemiboniso yokuthengisa.
Usasazo kunye ne-TV Studio S{0}}Iijika:Iphelisa i-seams ebonakalayo kwi-studio yangasemva egudileyo
Ukuqinisekisa umgangatho
Isiqinisekiso seMathiriyeli esingenayo:Ephakamileyo{{0}iiPCB zepolymer eziguquguqukayo kunye nemathiriyeli ekrwada eyenziwe ngokukodwa yesilicone iqinisekiswa ukomelela okuqinileyo kunye nokulandelela imfezeko phambi kokuhlangana.
UQinisekiso lweDynamic Flex Strain:Izifundo zokuvavanya ngokuzenzekelayo iibhodi zesekethe eziguquguqukayo ukuya kwimijikelo yokugoba ngokuphindaphindiweyo ukuqinisekisa ukuqhekeka komkhondo wombane we-zero okanye ukungaphumeleli okudibeneyo phantsi kweradii eqinile.
Ukujonga okuSebenzayo kunye noHlolo lomphezulu:Okuphezulu-ukuchaneka kokuhlolwa kokubekwa kwe-SMT kuqinisekisa iyunifomu ye-SMD 3-in-1 yolungelelwaniso lwetshiphu ye-LED ngapha kwe-silicone backing.
72-Iyure yoVavanyo lokuguga ngokuPheleleyo:Iimodyuli ezidityanisiweyo ziyaguga ngokungenasiphazamiso ekuqaqambeni okuphezulu kunye nepateni eqhubekayo yokukhwela ibhayisekile ukuphelisa ukusilela kwangaphambili kunye nokuqinisekisa ukufana kombala.
ULungiso loGcino lweMagnethi:Imagnethi ezishunyelelweyo ziyatsalwa{0}}zivavanyiwe kwizixhobo zovavanyo lwentsimbi ukuqinisekisa ukunyuswa okukhuselekileyo ngokwasemzimbeni ecaleni komphambili osebenza nzima{1}}ufikelelo lokususwa kwesixhobo.
Phambi{0}Ulungelelwaniso loThutho:Umbala kunye nokuqaqamba kwemveliso kuyo yonke ibhetshi yemodyuli iyalinganiswa ukuze kuqinisekiswe ukuhambelana okubonakalayo komthungo kunye neepaneli ezisicaba eziqhelekileyo.
Amandla eFactory & neMveliso
Umthombo womvelisi:I-140M yotyalo-mali iyonke, i-250,000㎡ / umthamo wonyaka, i-90% COB imigca yemveliso ezenzekelayo.
IQhinga lesithathu{0}}Uyilo olusisiseko:Shenzhen R&D Synergy + Jiangxi & Chongqing Smart Production Hubs.
Umgangatho oqinisekisiweyo:60+ amalungelo awodwa abenzi behlabathi jikelele, 160+ isiqinisekiso & nezatifikethi zembeko, ISO 14064 ukuthotyelwa okuzinzileyo.
Irekhodi yeGlobal Track:Idabi-livavanyiwe kwiiprojekthi ezinkulu zehlabathi (iOlimpiki zaseBusika, iZiko lezoRhwebo laseDubai, njl.).
Ukuphela-ukuya{1}}ukuphela kweNkonzo:24/7 inkxaso yobuchwephesha yehlabathi jikelele &{2}}kwisayithi amaqela obunjineli.
